Ceiling Joist Span Chart: Sizes, Spacing, Load Capacity, Installation Mistakes & Code Requirements

A standard 2x6 ceiling joist can span roughly 9 to 11 feet at 16" on-center spacing under a typical ceiling load with no attic storage. Go past that without support, and you're gambling with your ceiling. A 2x8 bumps that up to 12 to 14 feet. A 2x10 or 2x12 handles the big spans. But joist size alone doesn't tell the whole story; spacing, lumber species, load type, and local code all pull that number up or down. This guide covers all of it.

I remember standing in a lumber yard on a cold Tuesday morning, staring at a stack of 2x8s and genuinely not knowing if I needed them or if the 2x6s two feet away would do the job. Nobody in that store was going to help me figure it out. So I drove home with the wrong size, had to return half of them, and lost half a day. That's the kind of mistake this guide is designed to save you from.

Key Takeaways

• Joist span depends on size, species, spacing, and load type — not just lumber dimensions.
• 2x6 joists span 9 to 11 feet; 2x8 span 12 to 14 feet; 2x10 and 2x12 handle longer runs.
• Closer spacing (16" OC vs. 24" OC) adds meaningful strength to any joist size.
• IRC span tables and local building codes set the legal limits — always verify.
• Attic storage changes everything — live load jumps from 10 psf to 20 psf when boxes enter the picture.

What a Ceiling Joist Actually Does (And Why Getting This Wrong Hurts)

Most people think of ceiling joists as the things that hold up the drywall. That's true, but it undersells them. They also resist the outward push from your roof rafters. Without properly installed ceiling joists acting as ties, your exterior walls slowly bow outward over time. I've seen it in older homes. The ceiling looks fine from below, but the walls are subtly spreading because the rafter ties were either missing or undersized years ago.

So when you pick the wrong joist, you're not just risking a saggy ceiling — you're potentially compromising your roof structure. That's a bigger deal than most DIYers realize.

Here's a quick snapshot of what a ceiling joist does:

Standard residential ceiling joists are designed for a live load of 10 to 20 pounds per square foot (psf), plus a dead load of 5 to 10 psf from the ceiling material itself. That totals roughly 20 to 30 psf combined. Sounds like a lot. It's actually not that much — definitely not enough for serious storage without checking your spans first.

Common sizes you'll see in residential construction: 2x4, 2x6, 2x8, 2x10, and 2x12. Each has a different sweet spot for span and load. The right choice depends on how far they need to reach and what they're expected to carry.

The Ceiling Joist Span Chart (What the Numbers Actually Mean)

Here's the part most people scroll to first. And honestly? Fair. Let me give you the quick-reference chart, then explain what's behind the numbers.

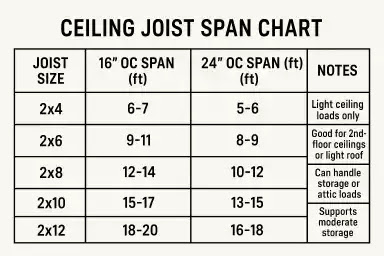

Quick Span Reference by Joist Size

Wait — those are general estimates. The actual numbers from IRC span tables and species-specific lumber data tell a more precise story. Here's what the IRC-referenced tables show for #2 grade lumber at specific load conditions:

IRC-Referenced Spans: Uninhabitable Attics (10 psf live load, 5 psf dead load, L/240 deflection)

IRC-Referenced Spans: Attics With Limited Storage (20 psf live load, 10 psf dead load, L/240)

Notice how much the spans change between the two load scenarios? A 2x6 Douglas Fir at 16" OC goes from 17'-8" with no storage down to 13'-0" once you add storage. That's almost five feet of lost span. If you've been treating your uninhabitable attic like a storage unit and wondering why the ceiling bows — this is why.

How Spacing Changes Everything

You're probably wondering: "Does 8 inches of spacing really make that big a difference?" Yes. Annoyingly, yes.

I learned this the hard way on a garage ceiling project. I went with 24" OC to save lumber. My drywall bowed slightly after installation. Annoying to look at, annoying to fix. Switched to 16" OC on the next section, and the difference was immediately obvious when I knocked on the ceiling.

Spacing affects two things: how much load each joist carries, and how much support the drywall has between joists. Wider spacing means each joist carries more of the total ceiling weight. It also means your drywall has a longer unsupported span between attachment points, which makes it more prone to flexing and cracking.

Spacing Impact on Load Capacity and Deflection

The fix when you're stuck with wider spacing? Either upsize the joist or add blocking between joists at midspan. Blocking prevents joists from twisting and distributes the load more evenly. It's cheap, and it works.

For engineered joists like TJI (Trus Joist I-Joists), 24" OC spacing is more commonly acceptable because those joists are stronger for their size than solid dimensional lumber. But even then, check the manufacturer's span tables. I can't stress this enough.

More Detailed: Ceiling Joist Spacing: Calculator, Sizes, and Chart Guide

Load Limits: What Your Ceiling Can Actually Hold

Here's where things get real. People ask me, "Can I store boxes in my attic?" more than any other question about joists. The answer depends entirely on what was designed into the framing.

Standard uninhabitable attic joists are built for a 10 psf live load and about 5 to 10 psf dead load. That's designed for someone walking up there occasionally, maybe moving insulation around. Not for stacked storage bins of holiday decorations, plus old furniture, plus three boxes of your college textbooks you'll never open again.

Once you introduce storage intent, the design load jumps to 20 psf live load and 10 psf dead load. That completely changes which joists are appropriate for which spans.

Ceiling Load Scenarios

One thing that catches people off guard: hanging heavy items from ceiling joists is a different problem than distributed storage. A 250 lb punching bag concentrates the load on one point. A ceiling rated for 20 psf distributed load might handle it fine — or might not, depending on the joist condition and attachment point. Always check the span and attach directly to the joist with lag screws, not just into drywall.

For quick load estimation on your actual setup, the SteelSolver Ceiling Joist Calculator is where I'd start. You plug in joist size, spacing, span, and load type — it spits out whether you're safe or not. I've used it to double-check designs before cutting anything, and it's caught two potential problems in the last year alone.

Lumber Species and Grade: The Hidden Variable

This is the part most people skip, which is a mistake. The species of wood you're using changes the allowable span by a meaningful amount.

Douglas Fir is one of the stronger species you'll commonly find in framing lumber — that's why it consistently shows the longest spans in the IRC tables above. Southern Yellow Pine is close behind. Hem-Fir and SPF (Spruce-Pine-Fir) are both solid choices and widely available, but they'll give you slightly shorter spans for the same size and spacing.

Lumber Species Comparison for Span Capacity

Grade matters too. Most of the span tables reference #2 grade, which is the standard for structural framing. Using #1 grade lets you squeeze out a bit more span. Using something below #2 — like utility or stud grade — reduces your span allowance and shouldn't be used for load-bearing ceiling framing.

For Douglas Fir specifically: a 2x6 Douglas Fir #2 at 24" OC with the "limited storage" load condition can safely span 10 feet 8 inches. That's the highlighted example from the IRC tables. I keep that number in my head because it comes up constantly.

Double Joists and Longer Spans

What if you're trying to span 13 feet but your 2x6s top out at 12? Before you jump to a bigger size, consider doubling up.

A doubled joist (two joists nailed tightly together) doesn't quite double the span capacity, but it meaningfully increases it. The key is nailing them together properly — not just resting one against the other. Use 16d common nails staggered at 12" intervals along the full length. Done right, it's solid.

Double Joist Span Estimates

I doubled up 2x6s once in a workshop ceiling so I could hang fluorescent shop lights and a small bike hoist. The ceiling felt completely solid afterward. No bounce, no flex. The trick is pulling the two boards tight together — any gap reduces the combined strength significantly.

One thing worth knowing: if you're working with I-joists (like Weyerhaeuser TJI joists), doubling up follows different rules. You don't just nail two together. There are specific guidelines for reinforcing I-joists, and field-modifying them incorrectly can actually weaken them. Consult the manufacturer's installation guide before doing anything creative with engineered lumber.

I-Joist (TJI) Specifics: More Span, More Rules

I-joists are engineered lumber — they have a top and bottom flange (the wide parts) connected by a thin web in the middle. They're stronger for their size than dimensional lumber and can span farther without deflection. That's why they show up in a lot of newer residential framing.

But they come with stricter installation requirements. Here's what bites people:

Common I-Joist Mistakes and Their Consequences

The blocking panel/squash block confusion trips up a lot of contractors, not just DIYers. Blocking panels keep the ends of the joist from rocking side to side. Squash blocks transfer vertical loads from above around the joist to the foundation. They're not interchangeable, and installing the wrong one — or skipping both — means your floor or ceiling system can't manage loads as designed.

Weyerhaeuser publishes a detailed installation guide for their TJI joists. Worth reading before you start any I-joist project. If you want a solid reference book to keep on the job site, I'd recommend "Graphic Guide to Frame Construction" by Rob Thallon (published by The Taunton Press). It covers framing details in a visual format that's easy to reference mid-project. It's not about joists exclusively, but the ceiling and floor framing sections are some of the best I've seen in a single volume.

UK Ceiling Joist Spans (BS 5268-7.3)

If you're building in the UK, the span tables look different. The underlying engineering is the same, but the measurement system shifts to metric, and the timber sizes follow UK regularised dimensions.

UK ceiling joists are governed by BS 5268-7.3, using timber strength classes C16 and C24. C24 is stronger and allows longer spans for the same timber size. Dead loads are expressed in kN/m² rather than psf.

UK Span Table Sample: C24 Timber, Imposed Load 0.25 kN/m²

The clear spans above assume a minimum end bearing of 40mm. Joists marked with an asterisk (*) in the full tables require that any boarding on top be fastened down — specifically those with a depth-to-width ratio greater than 4, because they're prone to rolling without restraint.

One thing the UK tables explicitly note: holes and notches are not permitted in these joists unless proven adequate by specialist calculations. That's stricter than the IRC's one-quarter depth rule in the US. If you're in the UK and need to run pipes or cables through joists, get a structural engineer involved before cutting anything.

Code Requirements: IRC, NC, and Local Variations

In the US, the go-to reference is the International Residential Code (IRC). Specifically:

• Section R802.4: Allowable ceiling joist spans
• Section R802.5: Ceiling joist connections, rafter ties, notching rules

Here's what the code actually requires, translated out of bureaucratic language:

IRC Ceiling Joist Code Summary

The rafter tie requirement is the one that surprises people. If your ceiling joists don't run parallel to your rafters, they can't act as ties. In that case, you need to install separate 2x4 rafter ties in the lower third of the rafter span. Skip this, and your walls may slowly spread outward over time — especially on long rafter spans with no ridge beam support.

North Carolina, Massachusetts, and other states sometimes add local amendments to the IRC. The core span tables stay mostly the same, but some jurisdictions have stricter wind load or seismic requirements that affect fastening schedules and lateral bracing. Always pull the local code, not just the base IRC, before finalizing a design.

For Canada, the National Building Code (NBC) governs span tables. They look similar to IRC tables. A 2x6 in Canadian framing typically spans 9 to 11 feet for standard ceiling loads, the same as in the US. The big difference is that CBC lumber grades follow NLGA grading rules rather than NHLA — the spans work out similarly, but the grade stamps look different.

Common Installation Mistakes (And How to Fix Them)

You're probably thinking, "I'll just be careful." And you will be. But some of these mistakes are so common that they catch experienced framers off guard. Let me run through the ones I see most often.

Top Ceiling Joist Installation Mistakes

The crown issue gets me every time I see it. Lumber isn't perfectly straight. Every stick has a slight bow. If you put that bow facing down, gravity keeps pulling it further down. If you put it facing up, the load actually helps push the bow out over time. Takes ten seconds to check. Saves months of headaches.

The drywall screw mistake is one I made myself on my first hanger installation. I thought — wrongly — that a screw is stronger than a nail in shear. It's not. Screws are brittle in shear loading. Framing nails are ductile; they bend rather than snap. Use the right fastener.

How to Calculate Joist Spans Yourself

You don't have to be an engineer to run a basic span check. Here's the logical sequence:

Step 1 — Determine your load type

Is this an uninhabitable attic with no storage planned? Use 10 psf live load, 5 psf dead load. Planning to store anything up there? Use 20 psf live load, 10 psf dead load.

Step 2 — Measure the span

This is the distance between supports — wall to wall, or wall to beam. Measure from bearing point to bearing point.

Step 3 — Know your lumber

What species? What grade? If you don't know, check the grade stamp on the end of the board. Most residential framing in the US is #2 grade SPF or Douglas Fir.

Step 4 — Pick your spacing

Are you installing at 12", 16", or 24" on-center? For most residential ceilings, 16" is standard.

Step 5 — Cross-reference the span table

Find your species in the appropriate table (no storage vs. limited storage), find your joist size and spacing, and read the maximum span.

Step 6 — Verify with a calculator

This is where I'd use the SteelSolver Steel Beam Calculator as a cross-check for any project where the spans are close to the limit or the loads are non-standard. It handles inputs you might miss when reading tables manually, like specific wood stiffness values or deflection criteria variations. Sanity-checking your table lookup takes maybe three minutes and has saved me from at least two miscalculations.

Deflection Limits Reference

Most ceiling joist span tables use L/240. That means a 12-foot span is allowed to deflect up to 0.6 inches under full design load. Sounds like a lot, but you'd barely notice it. If you're hanging a heavy plaster ceiling or tiles, L/360 or tighter is worth designing to.

Reinforcing Joists That Are Already Installed

So you've got existing joists that aren't quite cutting it. Maybe they're sagging a little, or you want to add storage to an attic that wasn't designed for it. You've got options.

Sistering is the most common fix. You nail a new joist alongside the old one along the full length, bearing on both ends. The new joist carries the load independently. Done right, it effectively doubles the capacity at that location.

Blocking is cheaper and faster. Install solid wood blocks between joists at midspan. This prevents twisting, reduces bounce, and can meaningfully stiffen a ceiling. It doesn't add a ton of load capacity, but it improves performance noticeably.

Joist hangers and straps are useful when you need to anchor an existing joist more securely or add a supplemental connection at the bearing points.

Joist Reinforcement Options

I've personally sistered ceiling joists twice. Once in my workshop, once in my father's house, where an old 2x6 had a large knot right at midspan and was visibly bowing under a light storage load. Both times: sister joist, nail it up tight, problem gone. It's not glamorous work, but it's reliable.

SPF Span Table (Canada/Northern US Reference)

For those using SPF lumber — common in Canada and the northern US — here's the standalone span table for #2 Spruce-Pine-Fir at 1.5 modulus of elasticity:

SPF #2 Ceiling Joist Span Table (Gypsum Ceiling)

The difference between storage and no-storage scenarios is significant here, too. A 2x6 SPF at 16" OC loses more than 3.5 feet of span when you switch from the no-storage to the limited-storage scenario. That's the kind of margin that gets people into trouble when they assume their ceiling was designed for boxes just because the attic has a floor.

Practical Checklist Before You Cut Anything

One last thing before you go buy lumber. Run through this before the first cut:

• [ ] Do you know the exact span (bearing to bearing)?
• [ ] Have you identified your lumber species and grade?
• [ ] Did you confirm load type: ceiling only, or attic storage?
• [ ] Is your spacing 12", 16", or 24" OC?
• [ ] Did you cross-reference the span table AND a calculator?
• [ ] Have you checked the local code for any amendments to IRC?
• [ ] Do you know where you'll need blocking or bridging?
• [ ] Are your joist hangers the right size for your joist dimensions?
• [ ] Are you using structural framing nails (not drywall screws) for hangers?
• [ ] Did you mark the crown direction on every joist before installation?

Summary Quick Reference

Picking the right joist isn't complicated once you have the tables and a clear picture of your load. The mistake most people make is trusting their gut over the numbers. Your gut doesn't know what species of wood is in the stack. The span table does.

Disclaimer: This guide is for informational purposes only. Building codes vary by location and project type. Always verify spans against IRC tables and your local building authority. For complex spans, heavy loads, or structural modifications, consult a licensed structural engineer.
